PIXELHUE – again?! Yes, you read correctly! Because it is time to take another close look at the two switchers P10 and P20, even though we already proudly introduced them a few months ago. Although they have a lot of similarities, they also have some drastic differences. And this is why we want to reintroduce the two models in comparison. By the way, to browse for further PIXELHUE products, you find our shop right here!

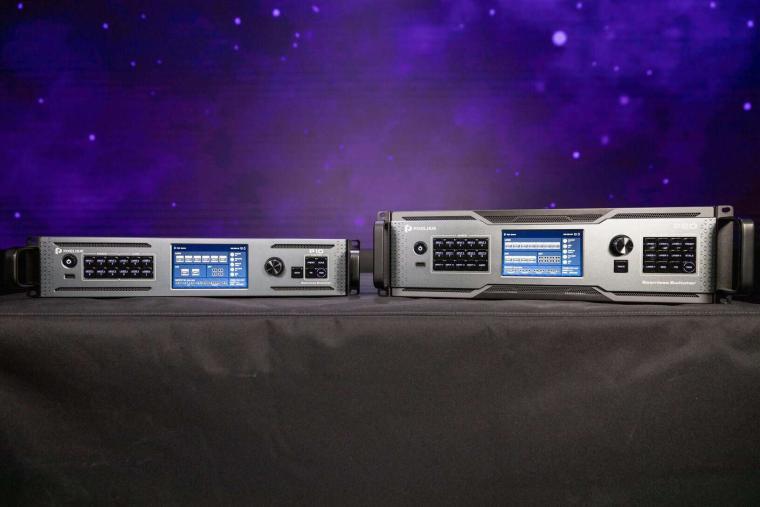

The P-series by PIXELHUE with the P10 (left) and the P20 (right), source: LEDTEK
The P10
The compact and handy P10 offers a balanced number of in- and outputs: with its DisplayPort 1.2, HDMI 2.0 and 12G-SDI connections, it makes a seamless integration of various sources possible. The outputs, thereof several HDMI 1.3 ports, offer the option to connect modern and older HDMI devices alike. This makes the switcher particularly functional and versatile. The two Gigabit-Ethernet-ports guarantee a quick and reliable network connection and therefore a smooth data transfer.
As you certainly know, the image processing plays a central role for the functionality of a switcher. The P10 convinces across the board: its optimal layer capacity does not only make high-quality image-in-image layouts possible, but also visual displays in best quality.
The controlling of the switcher is particularly user-friendly. Thanks to the 5-inch LCD display and the programmable keys on the front, the device can be handled effortlessly. Moreover, the U5 controller and the PixelFlow software offer an uncomplicated controlling. Besides that, the U5 is a compact live console in our selection which acts as a central control unit for processing a wide range of video signals. Depending on your individual requirements and the size of your event, you can choose a suitable controlling option for you. For orientation: the U5 is particularly useful for bigger events, while the PixelFlow software can be flexibly used for events of any size.

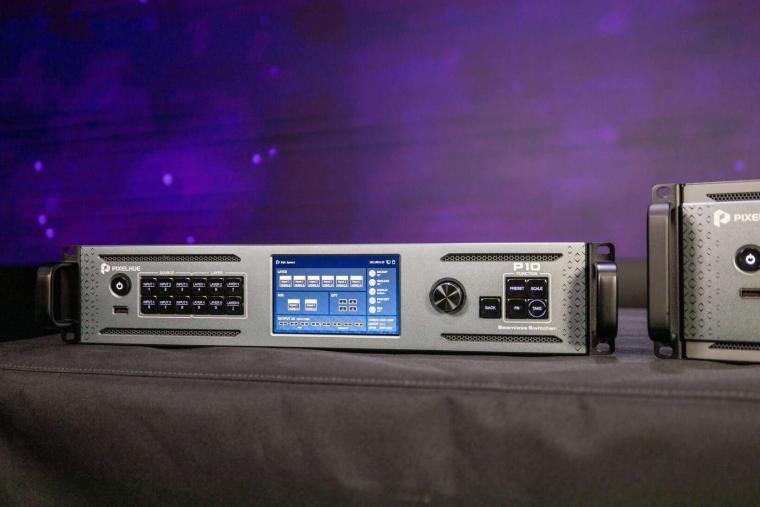

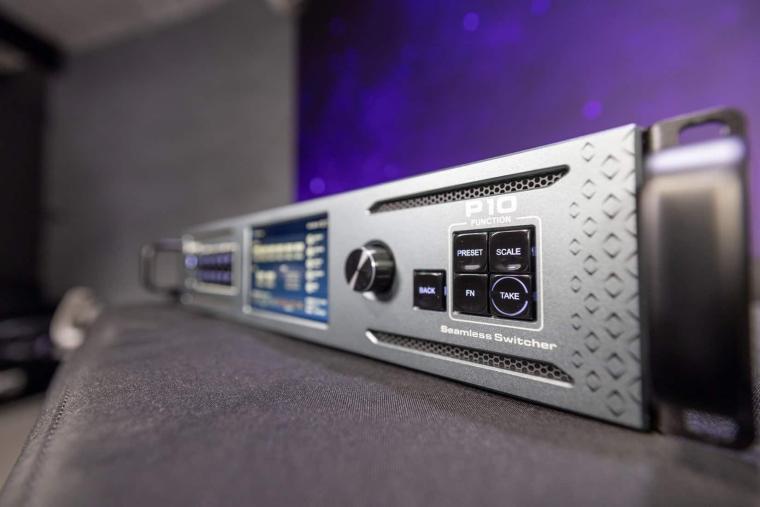

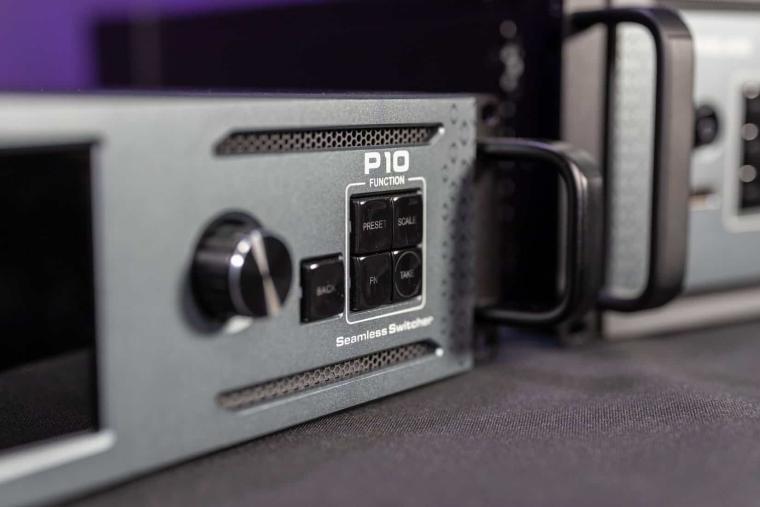

The PIXELHUE P10, source: LEDTEK
The P20
The P20 impresses with its extensive in- and output options. It offers the same connections as its smaller counterpart – nonetheless in a higher number. This enables the simultaneous connection of numerous sources and guarantees an extensive distribution of video signals. Therefore, there are no limits to your creativity and flexibility at any kind of event. As with the P10, two Gigabit Ethernet ports ensure fast and reliable data transmission.
What sets the switcher apart from its smaller brother are its extended image processing functions. And with this, we come to further crucial differences: the extended layer capacity of the P20 offers you various possibilities for visual display and grants a maximum resolution. In addition, advanced functions such as downstream keying, Luma and Chroma Key are used to provide outstanding image processing. These technologies make it possible to insert images or graphics over the video, seamlessly remove backgrounds and integrate effects.
As with the P10, you enjoy the highest comfort with controlling. The 5-inch LCD display and the programmable keys make controlling easier than ever. Besides that, you are supported by the PixelFlow software or the U5 controller.
The Multiviewer
Besides its numerous functions, the P20 impresses with a very special highlight: the integrated multiviewer. But what exactly is that? This practical function makes it possible for you to control several video sources all at once on your display. With this, you gain extensive control of the course of your event. You benefit from maximum ease of use.

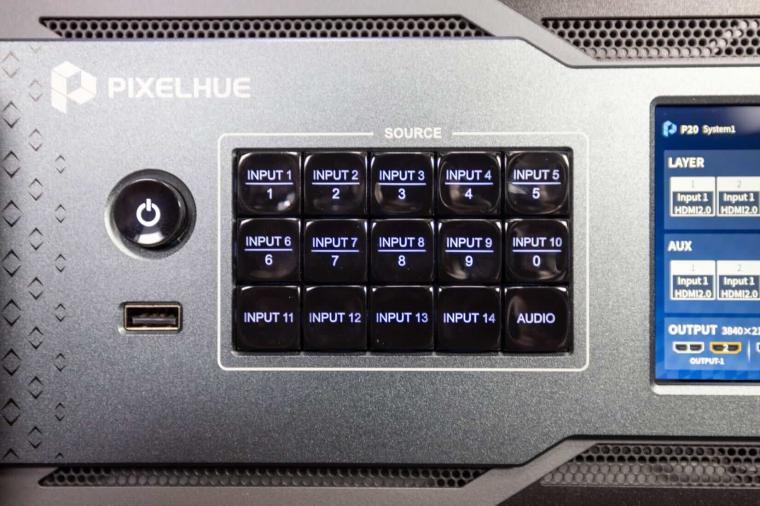

The PIXELHUE P20, source: LEDTEK
P10 or P20?
After looking at both products in detail, you need to decide which one best fulfils your requirements. Here are the essential differences at a glance: the P10 is ideal for smaller or medium-sized events. With its versatile HDMI connections for modern and older devices alike, a weight of only 7.9 kg, it is ideal for mobile and compact installations. It offers an ideal balance between performance and compactness. The P20 is ideal for bigger events due to its extensive inputs and outputs that offer a maximum of flexibility. It impresses with great image processing functions such as downstream keying, luma and chroma key and also features an integrated multiviewer that allows you to monitor all sources on the screen.
The most important data at a glance
| P10 | P20 | |
|---|---|---|
| Inputs | 4x DP 1.2 / HDMI 2.0 / 2x 12G-SDI | 8x DP 1.2 / HDMI 2.0 / 4x 12G-SDI |
| Outputs | 2x HDMI 2.0 / 6x HDMI 1.3 | 8x HDMI 2.0 |
| Data processing | 2x Gigabit Ethernet Port | 2x Gigabit Ethernet Port |
| Layers | 2x 4K@60Hz & 4x 2K@60Hz oder 3x 4K@60Hz | 3x 4K@60Hz & 4x 2K@60Hz oder 4x 4K@60Hz |
| Controlling | Controller U5 / U5 Pro / PixelFlow Software / keys on the front / 5″ LCD-Display | Controller U5 / U5 Pro / PixelFlow Software / keys on the front / 5″ LCD-Display / Multiviewer |
| Weight | 7.9 kg | 20.6 kg (with Flight Case) | 10.2 kg | 25.2 kg (withFlight Case) |
| Event size | small to medium-sized events | small and big Events |
