The stage is set for NEO
Indoor

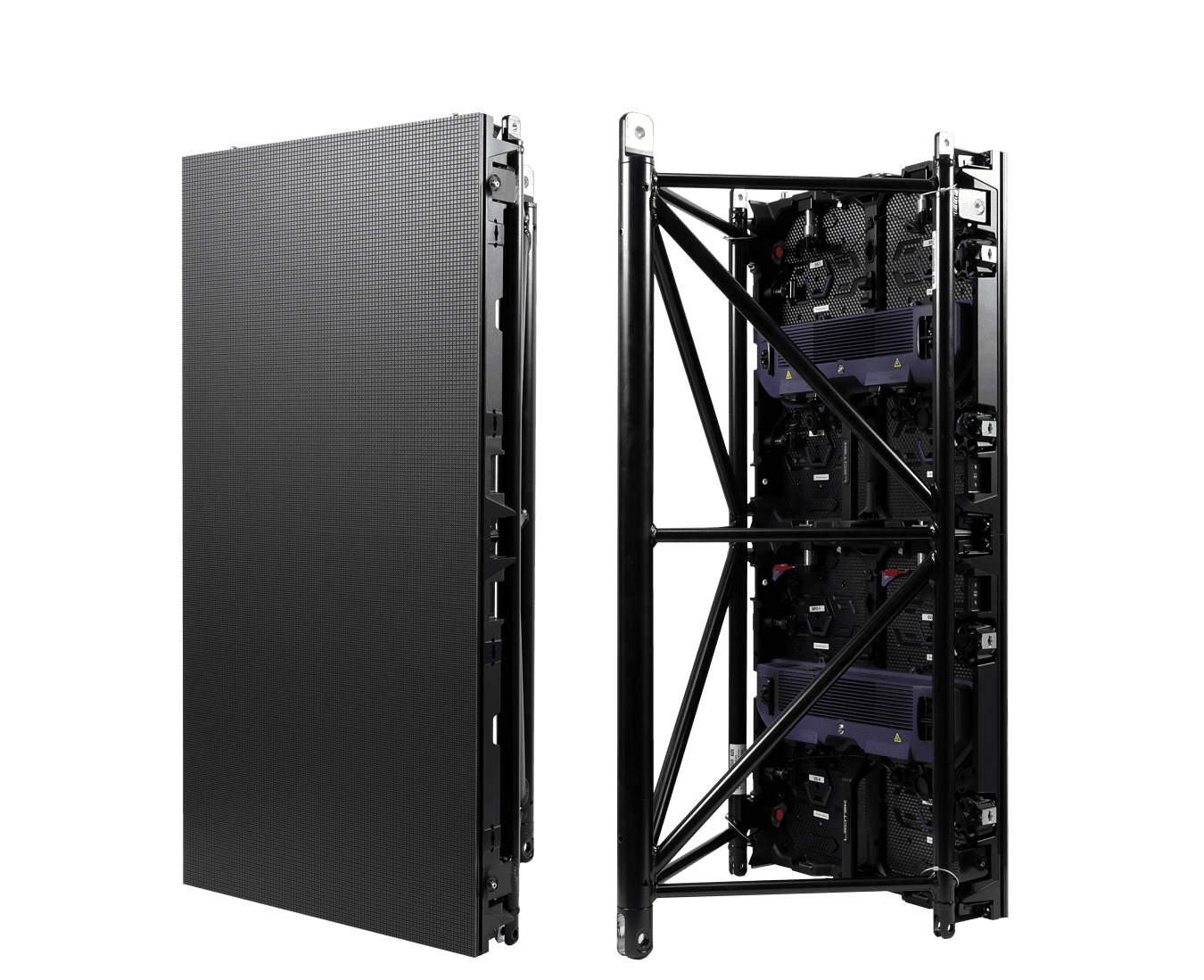

A perfect indoor rental wall that defies all odds and offers an infinite number of creative possibilities? That is what is available now – with the new NEO-series. A simple and functional design that consists of only three elements that make front and rear service possible. Paired with a carefree operation thanks to TÜV certification and a 3-year guarantee. All of this makes the P2+sBL NEO the perfect choice for indoor events of any kind.
Uniquely robust
The innovative QUADTEK technology makes the new NEO-series uniquely robust and durable. The built-in SMD LEDs that form a unit in fours ensure a high tolerance against shocks. The series can withstand many times the impact force that would cause problems for other LED-series. Bumpy roads and regular set up and dismantling do not bother this wall.
Sharp resolution
With a pixel pitch of 2.6mm, this indoor wall convinces with a resolution whose quality is supported by a contrast ratio of 10,000:1, an image refresh rate of 7,640 Hertz and a 16-bit colour depth and delivers a brilliant and vivid image. These features make the NEO the perfect fit for fairs, exhibitions or presentations. Nonetheless, it develops its full potential with HDR-presentations and in TV- or movie-studios.
Bright, brighter, NEO
This LED wall shines with 147,456 px/m² and a luminosity of 1,500 nits – even after calibrating. An intensive image guaranteed at any time and under all ambient light conditions.
Incredibly flexible

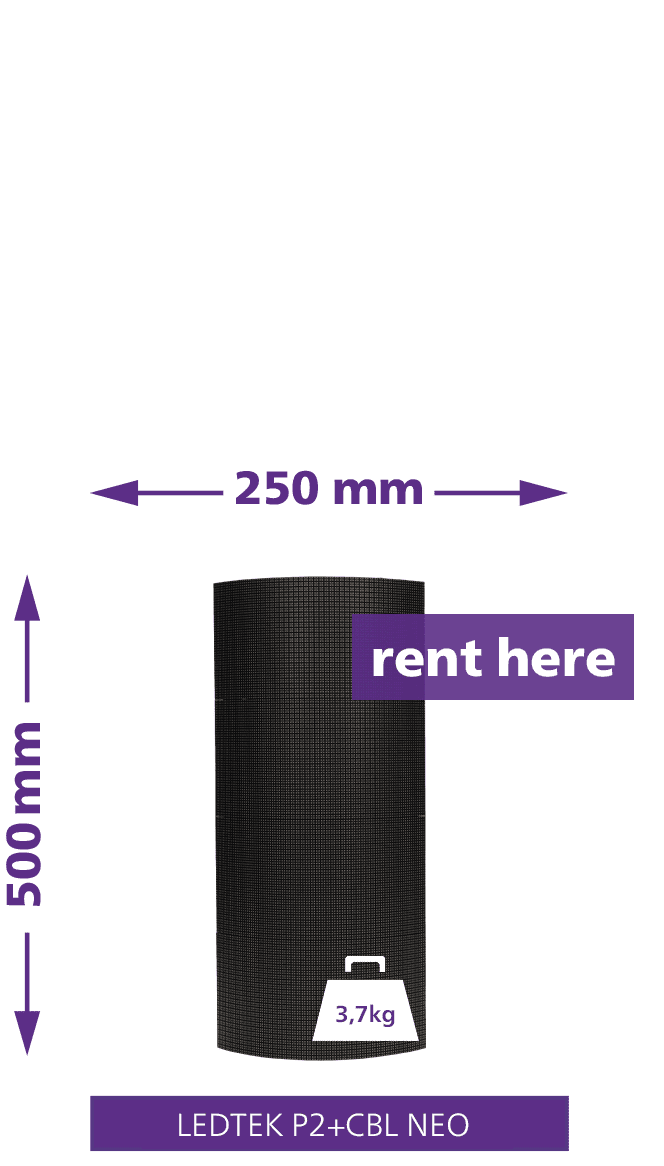

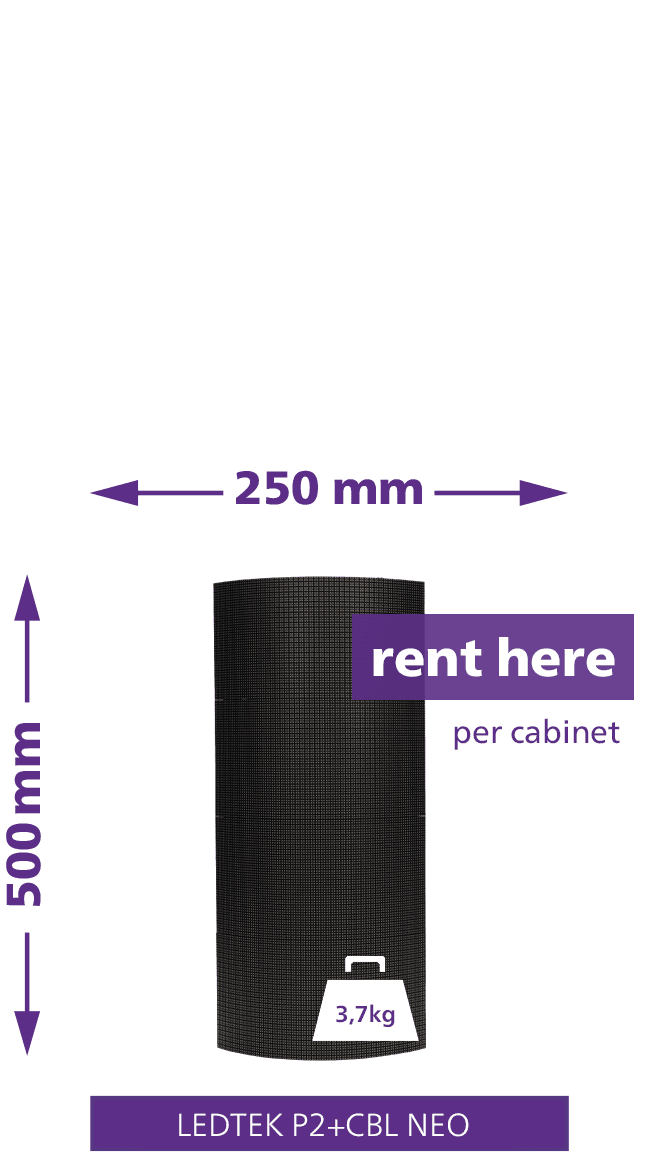

Turning around the corner? With the NEO-series, this is not just a saying. The curveable wall makes corners and curves up to 90° possible with the fitting corner cabinets (P2+cBL NEO). This makes you realize projects that seemed impossible before.
Simply compatible

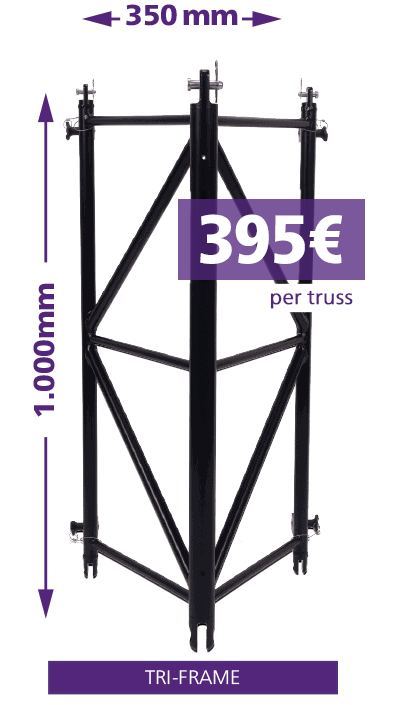

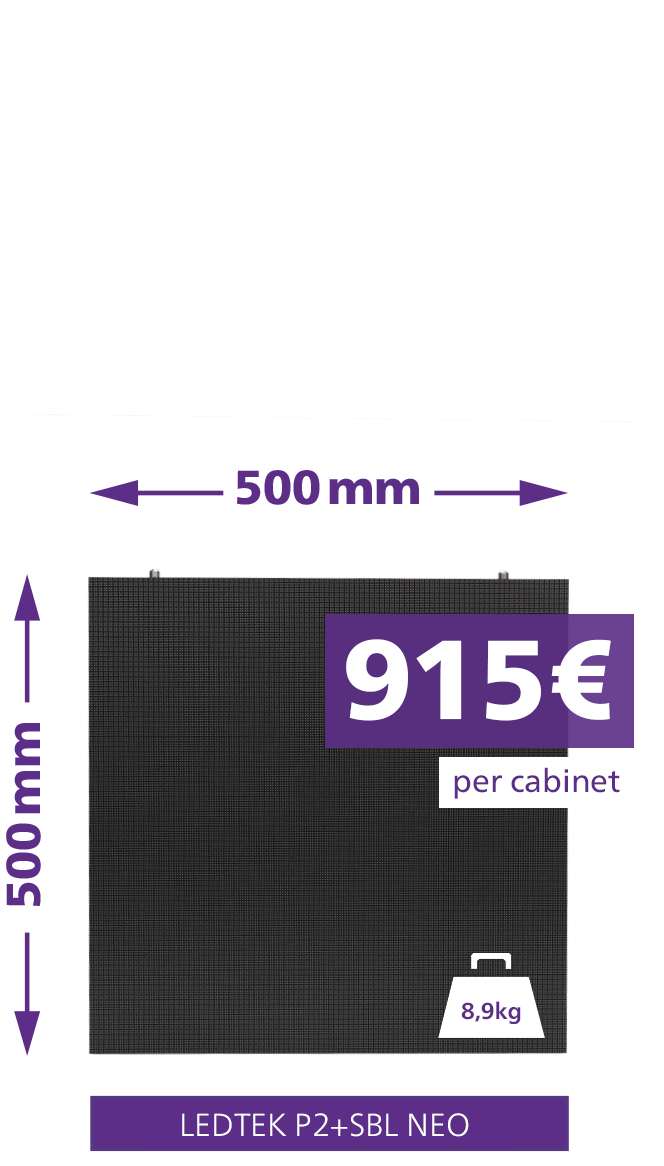

Luckily, a new LEDTEK-series does not mean new accessories. The opposite is the case. The P2+sBL NEO with its cabinets of 500x500mm is compatible with the Tri-Frame, a specially developed three-point truss. Besides high stability and efficiency, it promises time saving, as well as a number of structure variations. All constructions with the TÜV-certified Tri-Frames are calculated statically and hence guarantee you its stability and safety.
Prices & data
Cabinet features
| Pixel pitch | 2.6 mm |
| LED type | QUADTEK |
| SMD type (RGB) | 4in1 |
| Resolution in pixel / m² | 384 x 384 px |
| Number of pixels / m² | 147.456 px/m² |
| Luminosity | 1.500 Nits |
| Display colours | ≤ 281 Bio |
| Contrast ratio | 10.000 : 1 |
| Refresh rate | 7.680 Hz |
Viewing angle
| Horizontal | 160 ° |
| Vertikal | 160 ° |
| Viewing distance | 3 m |
IP code
| Front / back | IP 20 |
Certifications
| EMV Prüfbericht: AE50448036 0001; NSpRL Prüfbericht (EN-61000): 50292012 001 PhotoBioSi Prüfbericht (EN-62471): 50295555 001 |
FLEXIBLE INSTALLATION
HANGING CONSTRUCTION
The classic: up to 14 LED cabinets can be hung among one another without any difficulties. With flying bar widths of 0.5 to 3.5m in length, your LEDTEK wall is quickly ready for use.
STANDING CONSTRUCTION
No hanging possibility? No problem! LEDTEK offers a multitude of need-oriented studdings and base plates. So you will find exactly the right option for your project.
PERTIMETER ADVERTISING / SPORTS
LEDTEK goes sport! Expand the application range of your LEDTEK cabinets with optional accessories. With just a few simple steps, you can add an interactive perimeter advertising to any sporting event.
Configurator
The offer is directed exclusively at commercial customers and is subject to change. LEDTEK cabinets are to be used in other than private households. Errors and omissions excepted. Our general terms and conditions apply. All prices stated above are exclusive of VAT at the statutory rate.
