NOW COMES PRO
Indoor
A new type of truss system that offers you a number of new possibilities. A simple, functional design consisting of only three components, a carefree operation thanks to TÜV certification and a 3-year guarantee are features of this new generation of LED walls. Infinite application options, infinite combinations. These are the features of this new generation of high-resolution LED walls. With this, we are announcing a new professional league for indoor use.
OPTIMAL SAFETY
A single piece of crossbar makes the PRO frame robust, stable and uniquely safe. As our everyday life is LED technology, we know the demands made on LED walls. With the Tri-Frame, your LED installations get more stability with less effort. In any format, whether as a narrow LED pedestal with the Tri-Frame base plate or as an eye-catcher like a large indoor structure with the Tri-Frame – the specially developed three-point truss makes all these variations simply, efficiently and safely possible.
SIMPLY GOOD
PRO. Developed by us, tested and approved by TÜV Rheinland. Experience and passion ensure reliable cabinets for every occasion. Experience the most advanced LED technology thanks to sturdy LED cabinets, a stable Tri-Frame and the innovative NovaStar solutions. The overall system PRO offers you infinite possibilities with your LED wall. A rental-allrounder for fairs, points-of-sales and other indoor events of any kind. Take it with you – anywhere.
MAXIMUM EFFICIENCY

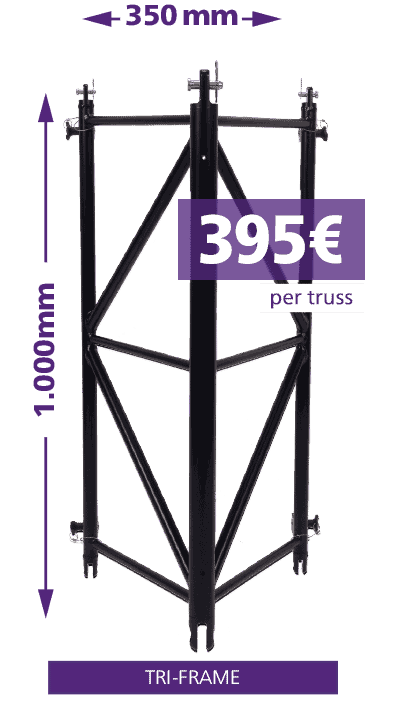

Efficiency is one of the cornerstones of the PRO. And it does not get much more efficient than the Tri-Frame studding. Although it consists of only a few elements to save material and working time, the TÜV-certified framework is safe and sturdy. It can be installed in 36 different, statically calculated variations up to a height of 8 meters. Indoor setups will be a piece of cake.
EXTRA SLIM
When you need a smaller option, the Tri-Frame base plate is your product of choice. It is the counterpart to the Tri-Frame studding and allows the construction of particularly narrow LED walls used as freestanders or points-of-sale. However, even wider setups are quickly and easily realized with the Tri-Frame base plate.
ULTRA FAST
Safe assembly will not get much faster than this. A three-point truss with a click system without complicated screw connections and a scaffolding with pin and wedge lock technology. Statically and theoretically proven and practically tested for its feasibility, this is a productive cooperation between LedTek and Layher. Stability can be this quick.
Pro at a glance

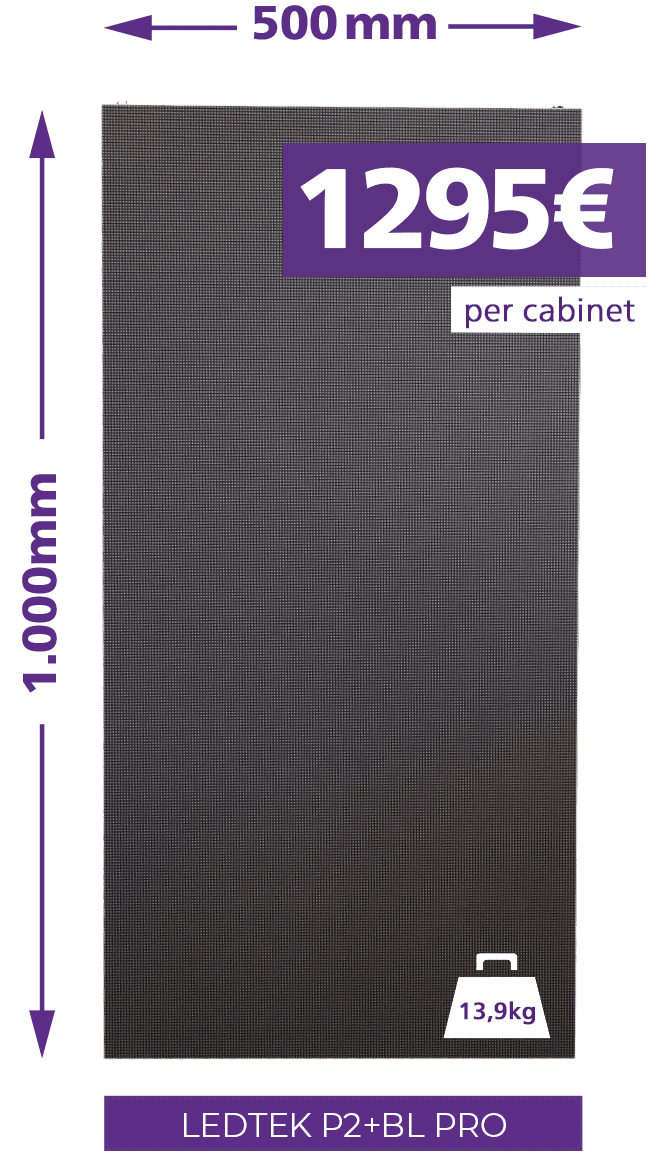

“A quantum leap in our company history.” This is true for both the P4+WH PRO and its new equivalent for indoor areas, the P2+BL PRO. Together they form an overall concept where all elements work together without any issues. This team leaves nothing to be desired. Convince yourself of the easy handling and efficient design of the PRO series.
AR for the Pro series
Would you like to have a look at the P2+BL PRO from all angles? No problem, you can use this link to view the wall in 3D. Or why not bring the PRO home virtually? Simply scan the QR code with your smartphone or tablet and you’re ready to go!

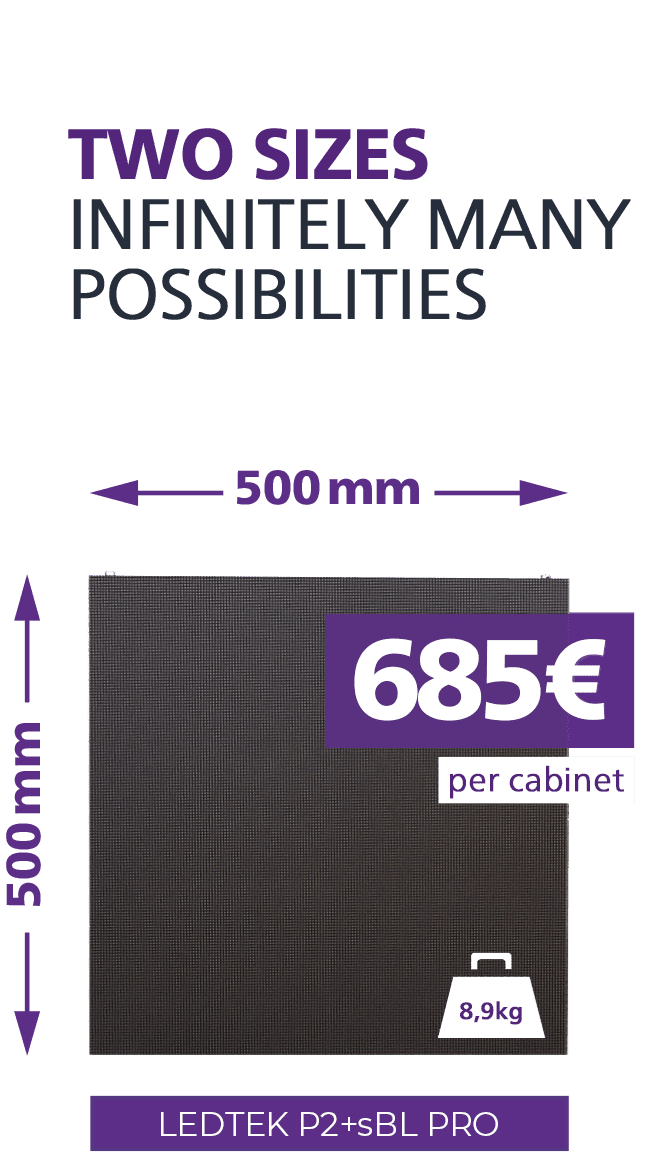

PRICES & DATA
CABINET CHARACTERISTICS
| Pixel pitch | 2.97mm |
| LED type (Kinglight) | SMD 2020 |
| SMD type (RGB) | Morion 2020 |
| Resolution in pixel / m2 | 336 x 336 px |
| Number of pixels / m2 | 112.896 px/m² |
| Light intensity | 1.000 Nits |
| Display colors | ≤ 16 Mio |
| Contrast ratio | 5.000 : 1 |
| Refresh frequency | 2.880 Hz |
VIEWING ANGLE
| Horizontal | 160 ° |
| Vertical | 140 ° |
| Viewing distance | 3 m |
IP PROTECTION CLASS
| Front side / rear side | IP 30 |
CERTIFICATES
| ROHS / CE ; EMV Prüfbericht: AE50425582; NSpRL Prüfbericht: AN50445293 |
FLEXIBLE CONSTRUCTION
HANGING CONSTRUCTION
The classic: Up to 14 LED cabinets can easily be hung one below the other. With flying frame widths from 0.5 to 3.5 meters in length, your LEDTEK Wall is quickly ready for use.
STANDING CONSTRUCTION
Hanging your wall is not an option? No problem! LEDTEK offers a multitude of studdings and base plates fitting for your individual needs. Hence, you will always find the right option for your project.
SPORTS
LEDTEK goes sport! Extend the application range of your LEDTEK cabinets with optional accessories. With a few simple steps you can enrich every sports event with an interactive advertising board.
BROCHURE & TIPS
BROCHURE
MANUAL
STATICS INDOOR
DATA SHEET
CONFIGURATOR
The offer is directed exclusively to commercial customers and is subject to change. LedTek cabinets can ́t be used in other than private households. Errors and changes reserved. Our general terms and conditions apply. All mentioned prices do not include the legal VAT.
